Diagnostics (UDS)

The Diagnostics view sends Unified Diagnostic Services (ISO 14229) requests to an ECU and shows the responses. On CAN it uses ISO-TP (ISO 15765-2); on LIN connections the LIN transport layer.

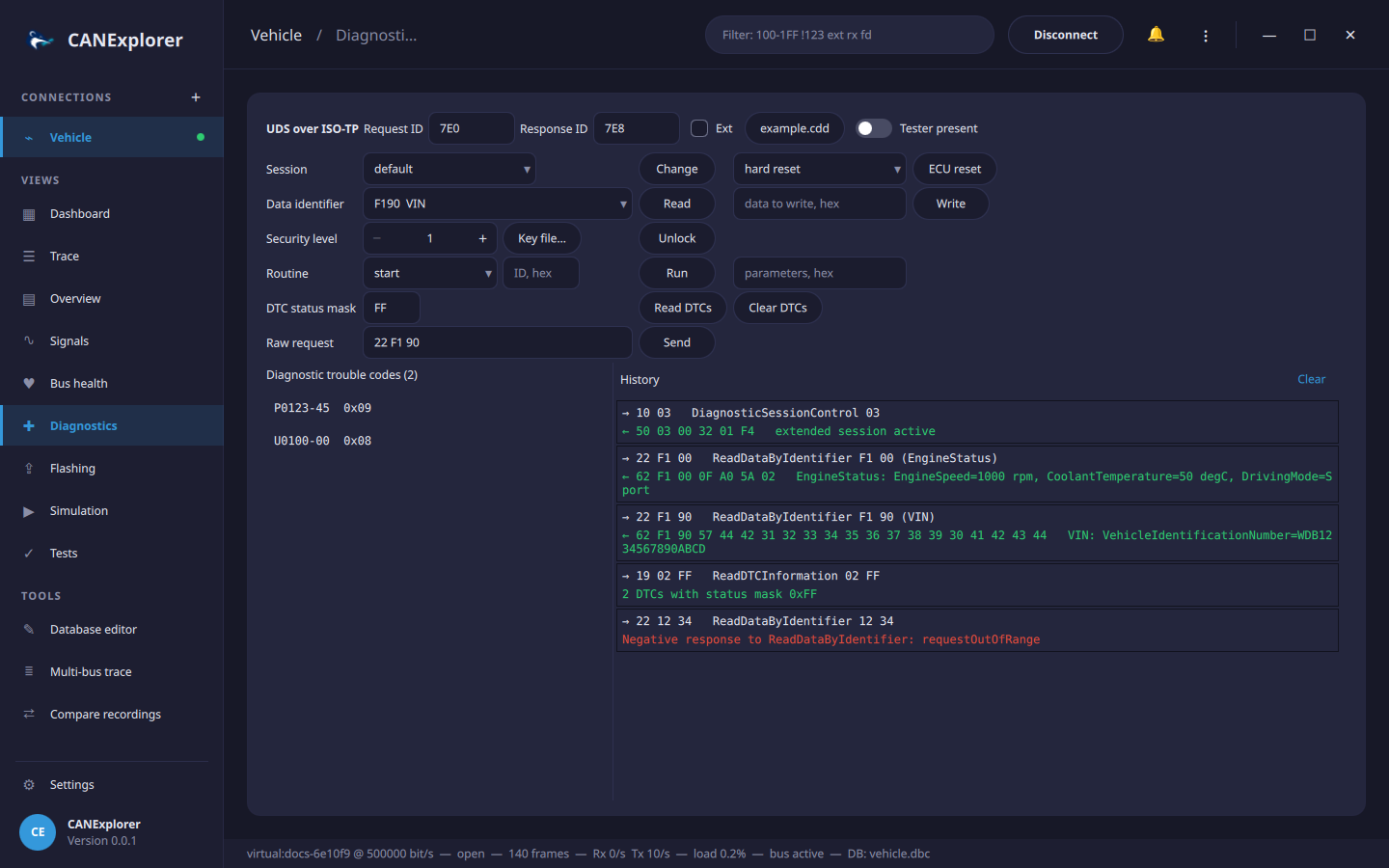

Diagnostics view

Addressing

  • CAN: the Request ID and Response ID of the ECU (default 7E0/7E8), Ext for 29-bit identifiers. Classic CAN and CAN FD frames (on CAN FD connections) are supported, with normal addressing.
  • LIN: the NAD of the slave node (default 01). Requests are sent in master request frames (0x3C) and the response is collected by polling slave response headers (0x3D).

Services

Row Service
Session DiagnosticSessionControl (0x10): default, programming, extended, safety system
ECU reset ECUReset (0x11): hard, key off/on, soft reset
Data identifier ReadDataByIdentifier (0x22) and WriteDataByIdentifier (0x2E)
Security level SecurityAccess (0x27), see below
Routine RoutineControl (0x31): start, stop, request results, with parameters
DTC status mask ReadDTCInformation 0x19 0x02 (report DTCs by status mask) and ClearDiagnosticInformation (0x14)
Raw request Any request as hex bytes
Tester present Keeps a non-default session alive: TesterPresent (0x3E 0x80) every 2 seconds

Every request and its response are added to the History (positive responses in green, negative responses and timeouts in red). Responses are interpreted: standardised data identifiers by name (VIN, ECU serial number, …) with text values, negative response codes by name (e.g. securityAccessDenied). "Response pending" answers are waited for (up to 5 s each); other responses time out after 1 s.

Trouble codes

Read DTCs lists the DTCs matching the status mask (hexadecimal, FF for all) in SAE J2012 notation, e.g. P0123-45 (code and failure type) with their status byte; hover a DTC to see the status bits (testFailed, confirmedDTC, …). Clear DTCs clears all diagnostic information (group 0xFFFFFF).

Security access

Seed/key algorithms are specific to each manufacturer, so CANExplorer does not include any. Provide the algorithm as a Python file defining:

def compute_key(level: int, seed: bytes) -> bytes:
    """Return the key for the seed received for the given (odd) security level."""
    return bytes(byte ^ 0xFF for byte in seed)  # Example only

Choose it with Key file…, select the (odd) level and press Unlock: CANExplorer requests the seed, calls compute_key and sends the key. A seed of zeros means the level is already unlocked.

Warning

The key file is executed. Only use files you trust.

Diagnostic descriptions (CDD)

A Vector CANdelaStudio description (.cdd) of the ECU names its data identifiers and describes their data. Load it with Description… in the Diagnostics view (or with Load database…):

  • The data identifier list starts with the identifiers of the ECU.
  • ReadDataByIdentifier responses are decoded into fields with units and value texts: EngineStatus: EngineSpeed=1000 rpm, CoolantTemperature=50 degC, DrivingMode=Sport.
  • The UDS and LIN protocol decoders of the trace use the description too.

Supported are the simple data types of CDD files (unsigned, signed, float and text values in both byte orders, with linear scaling and text tables, including value ranges) and DIDs built from structures, unions (shown as all alternatives) and shared DID structures. Data of other types is shown in hex.

Simulated ECU

can_explorer.core.simulation contains a UDS server (sessions, DIDs, security access with the key seed XOR 0xFF, DTCs, routines, downloads for flashing) reachable over ISO-TP (UdsEcuSimulator) or behind simulated LIN slaves (LinSlaveSimulator). The tests and tools/docs_screenshots.py use them; the latter shows how to run one next to the application.
